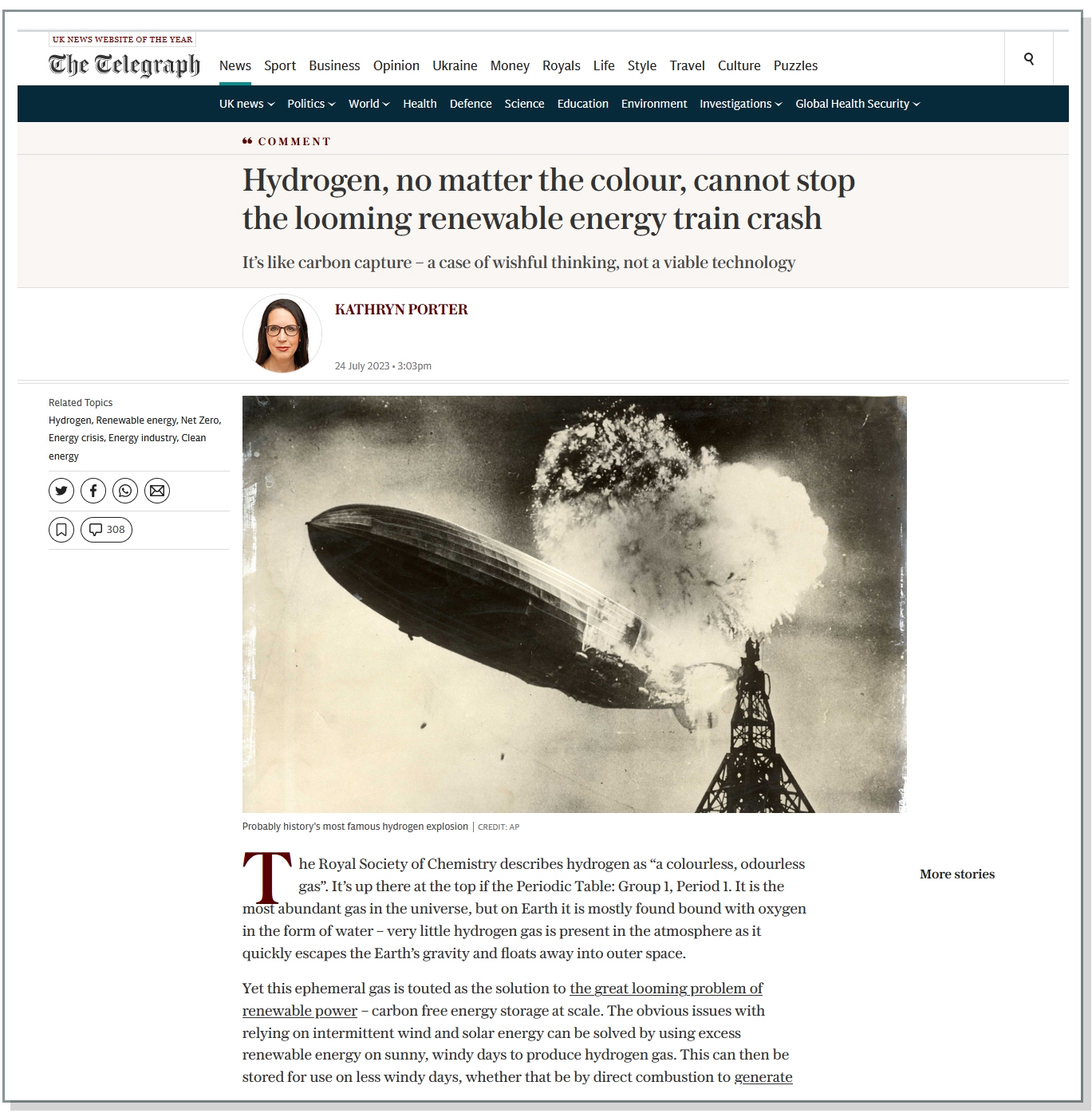

This week I had an opinion piece published in The Telegraph on the use of hydrogen as a means of energy storage which could help to manage the intermittency from weather-based renewable generation. It has attracted a fair amount of comment, partly around the title and image, neither of which I chose, but also because this is something of a hot topic. Hydrogen has largely taken over from Carbon Capture and Storage (“CCS”) as the silver bullet which will make all our net zero dreams come true. In the article, I explain why the physical characteristics of hydrogen make it one of the worst substances you could think of for the purposes of energy storage.
Despite the hype around hydrogen, it has yet to take off as a net zero enabler. Yes, hydrogen has been used for many years in industrial applications, and materials and processes have been developed for the safe handling of the gas. But what is proposed in the context of net zero is orders of magnitude larger than the current use of hydrogen. I remain of the opinion that the main benefit of hydrogen will be for heavy transportation – rural railways, aircraft, and potentially shipping, particularly over shorter distances.
I struggle to see hydrogen for heating being viable, and for many of the industrial applications proposed for hydrogen, small-scale nuclear might be a better option.
In the UK, the Government appears to be going cold on the idea of a huge hydrogen economy. More broadly, some elements within the ruling Conservative Party have identified that a softening of net zero ambitions might be a vote-winner in what otherwise looks to be a challenging General Election in the next couple of years. The surprise retention of the Uxbridge and South Ruislip seat in the recent by-election was attributed to a voter backlash against the unpopular vehicle emissions charging scheme in London. Only a clear government mandate would allow hydrogen infrastructure to develop at a scale that would make it a meaningful contributor to meeting the net zero target.
One hydrogen village trial has been cancelled and the other looks uncertain
The Uxbridge by-election result came hot on the heels of the confirmation on 10 July that the proposed hydrogen village trial in Whitby, Merseyside will not go ahead after significant local opposition. Lord Callanan tweeted to confirm that discussions regarding a similar trial in Redcar, Teeside are ongoing, and a decision will be made shortly. Whitby residents raised concerns over the safety of hydrogen and worried it would be less energy-efficient and more expensive than conventional gas or electric heat pumps.
Justin Madders, the Labour MP for Ellesmere Port and Neston in whose constituency the Whitby trial would have taken place, pointed out that asking people to try experimental new forms of domestic energy without reassuring them about safety, efficacy and cost would be difficult, and that giving them the impression it would happen without their consent “sent entirely the wrong message out about how we need to tackle climate change”.
“We need written, cast-iron assurances that this is the end of the matter and that the people of Whitby and Ellesmere Port will not have foisted on them at some later date a hydrogen village, a hydrogen town or some other variant. People have had enough,”
– Justin Madders, MP for Ellesmere Port and Neston
Unlike the residents of Whitby, the people of Redcar have not been given the ability to opt out of the trial if it goes ahead. Northern Gas Networks (“NGN”) has said it plans to operate only one gas network in the area, so if it is converted to hydrogen, the residents will have to accept hydrogen or electrify. Locals are calling for a vote on whether the scheme should go ahead. The Government has previously said it would not progress without local support, but NGN points to the 10 month consultation process, including an independent survey which found 95% of residents and landlords felt “positive or were neutral” about the proposals.
The trial will include around 2,000 homes, in which boilers will be replaced with hydrogen-ready models. Initially, blends will be tested, increasing to 100% hydrogen, to assess the practicalities of using hydrogen for domestic heating. The Government has said the trial is likely to go ahead over the original timeframe of 2025 to 2027, if approved, however, with the costs rumoured at £100,000 per household, it is not certain it will be sanctioned.
There are wider concerns about the potential costs of hydrogen for heating. Earlier this year, a meta-analysis of research in the field found that all 38 hydrogen studies analysed concluded that hydrogen would play no more than a marginal role in the provision of domestic heat. Not only will hydrogen be expensive to produce, its lower density means more of it is needed to generate the same amount of heat, compared with methane.
The cost concern also applies with heat pumps, whose manufacturers suggest that in colder climates, a ground source heat pump would be more effective (these are also more expensive) or that a “back-up” heat pump might be needed. In other words, you may need more than one heat pump to maintain adequate warmth levels, which of course doubles the cost. (Part of the reason that heat pumps are less efficient in the cold is that heat has to be diverted to prevent ice build-up on the out-door equipment).
Hydrogen is still being developed as a transport fuel
Hydrogen cars have been a bit hokey cokey – in, out….you get the picture. The very first four-wheel vehicle with an internal combustion engine ran on hydrogen and oxygen in 1807, with the hydrogen stored inside a balloon. The first practical hydrogen fuel cells were created in 1932 by Francis Thomas Bacon and used by NASA.

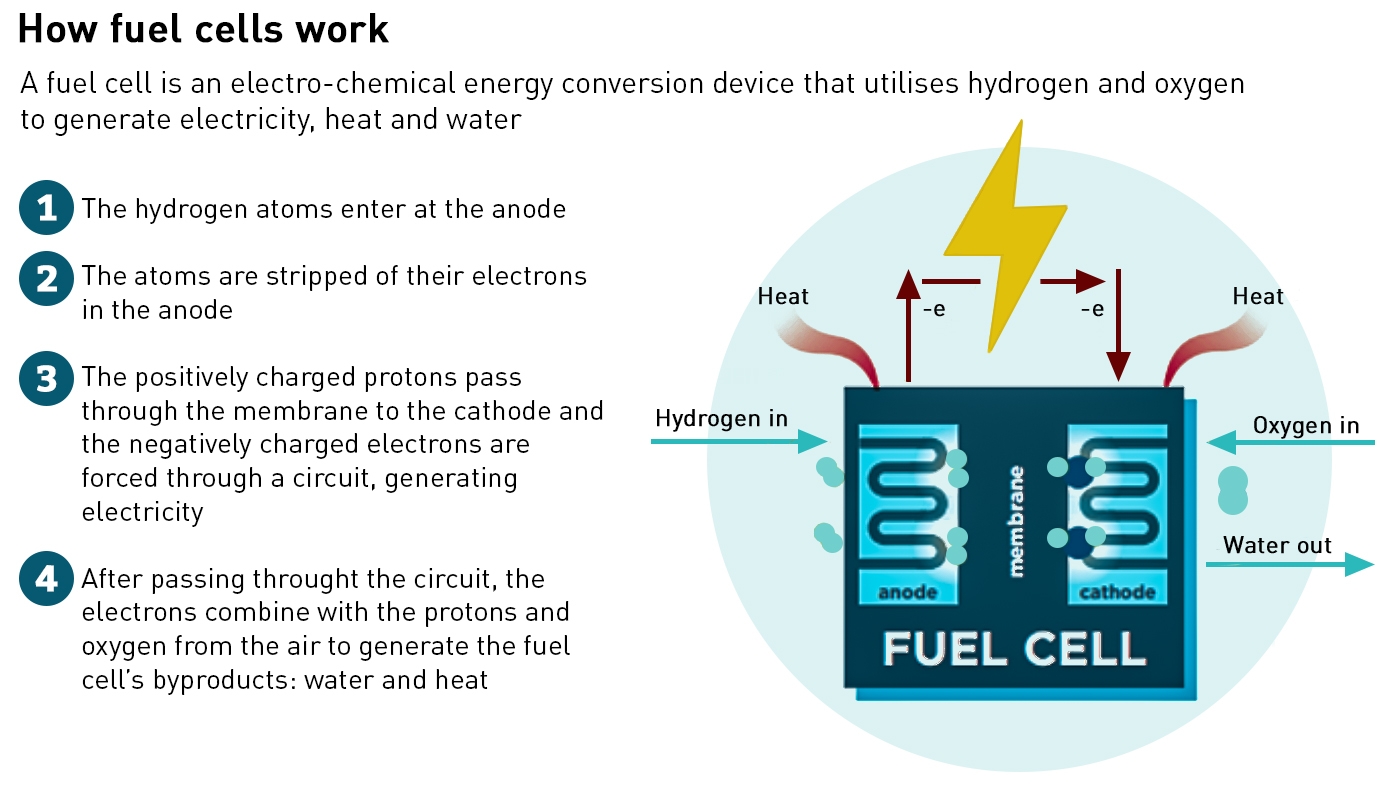

Japanese car makers have had a long interest in hydrogen fuel cells, but in 2021 Honda pulled out, leaving Hyundai and Toyota as the only makers of hydrogen cars. Shell committed to hydrogen filling stations in the UK but quietly closed them all also in 2021. In 2003, US president George W Bush offered US$1.2 billion in funding to get hydrogen cars on the road, yet across the entire United States there are only 58 hydrogen fuelling stations, all but one of which are in California. Lack of fuelling stations is a major reason for the low uptake of hydrogen cars, and while there have been similar concerns over electric charging stations, the rollout of those has been faster.
However, BMW believes hydrogen cars will make inroads with drivers who are unlikely to want an electric car, and has identified four categories of driver for whom this may apply: customers who do not have space for home charging, eg a garage or driveway; drivers who require high flexibility or travel frequently, for whom even fast charging is too time consuming; buyers in cold climates where battery life is very low; and those who tow heavy loads.
The company is trying to introduce models which will compete directly with Tesla, something which hasn’t been available in the past where a lack of prestige hydrogen cars held back its popularity. In many ways it was the desirability of Tesla’s first electric cars that drove the growth in EVs, with smaller and cheaper models backfilling the market, although it should be noted that conventional ICE equivalents are still much cheaper to buy. The recent development of the high performance Hyperion XP1 might boost the kerb-appeal of hydrogen cars, but the extremely high price tag will put it out of reach of all but the super-rich.
Hydrogen cars share some of the drawbacks of EVs, in particular lack of fuelling capacity and high vehicle weight. Although there are more charging points than hydrogen filling stations, by some margin, many EV charging points do not work, and/or charge very slowly. Absent a wider hydrogen infrastructure it’s hard to see how the challenge of fuelling would be solved in the car sector.
However, for larger vehicles, hydrogen still looks to be a more interesting and viable alternative than batteries. As with grid storage, the sub-optimal lithium-ion technology has stolen a march but is likely to lose out in the longer term to technologies better suited to the application. This may be the case with heavy vehicles as well, where the economics of fuelling infrastructure for a fleet of buses or trucks looks very different to that for individual cars, with on-site hydrogen production being a feasible option. Both have safety considerations that need to be addressed, as indeed do conventional fuelling stations, but it is likely to be economics rather than safety which provides the main barriers to progress, although the accident in California last week might give some pause for thought.
Hydrogen is also being developed for trains. In the UK, HydroFLEX, the first prototype hydrogen train has had trial runs on mainline rail infrastructure, while, hydrogen trains are already in commercial operation in Germany, and are due to go into service in France next year.
Several hydrogen powered ships have made test voyages this year, and Ballard expects to launch a 109.8 meter-long cargo vessel later in 2023, which will operate on the 240 kilometre route between Rotterdam, in the Netherlands and Duisburg, in Germany along the Rhine. Several companies have plans for autonomous hydrogen powered ships for short sea-journeys. Longer voyages will be challenging given the space requirements for the fuel.
Notwithstanding the Hindenburg experience, hydrogen is also being explored for air travel. Earlier this year a small hydrogen-powered turbo-prop passenger aircraft had a successful test flight in the US while in the UK, ZeroAvia, a similar turbo-prop, has successfully flown at 5,000 feet, paving the way for certification. Airbus in working on a hydrogen plane which it hopes to launch by 2035. The downside of hydrogen for planes is the amount of space the fuel tanks would take up, but hydrogen is likely to be more viable for aircraft than batteries which are both bulky and very heavy as well as having much lower energy density (about 200 times less than hydrogen).
It feels as if recently the shine has started to come off hydrogen, despite the slew of firsts in the transport sector. This is to be welcomed – hydrogen makes a lot more sense for trucks and rural trains than it does for heating or energy storage. Let’s hope policy-makers listen, and don’t commit £ billions of tax-payers’ money to an approach that is unlikely to deliver good value.
